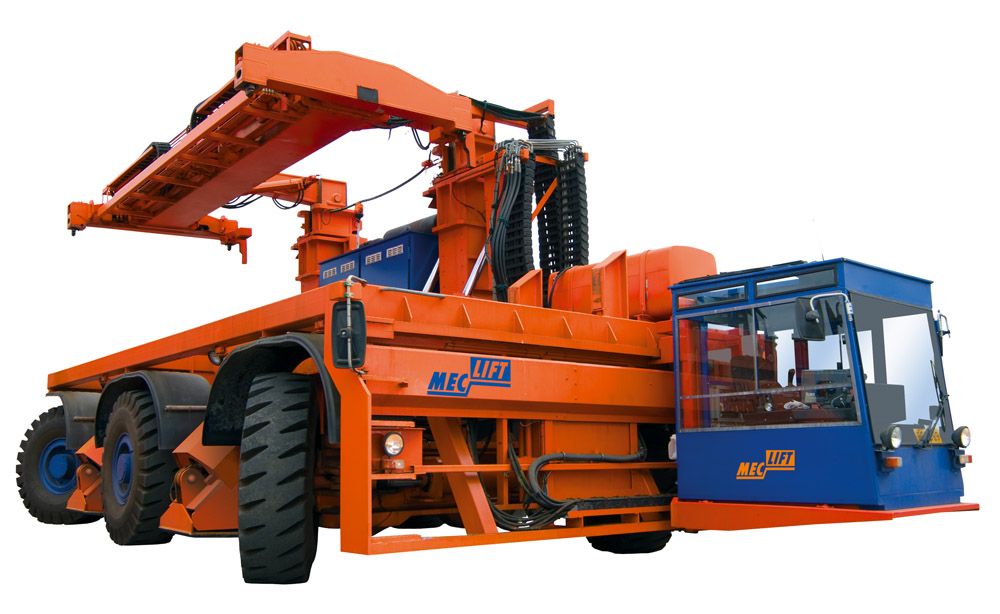

Meclift ML5016SR

Efficient logistics between railroads and highways

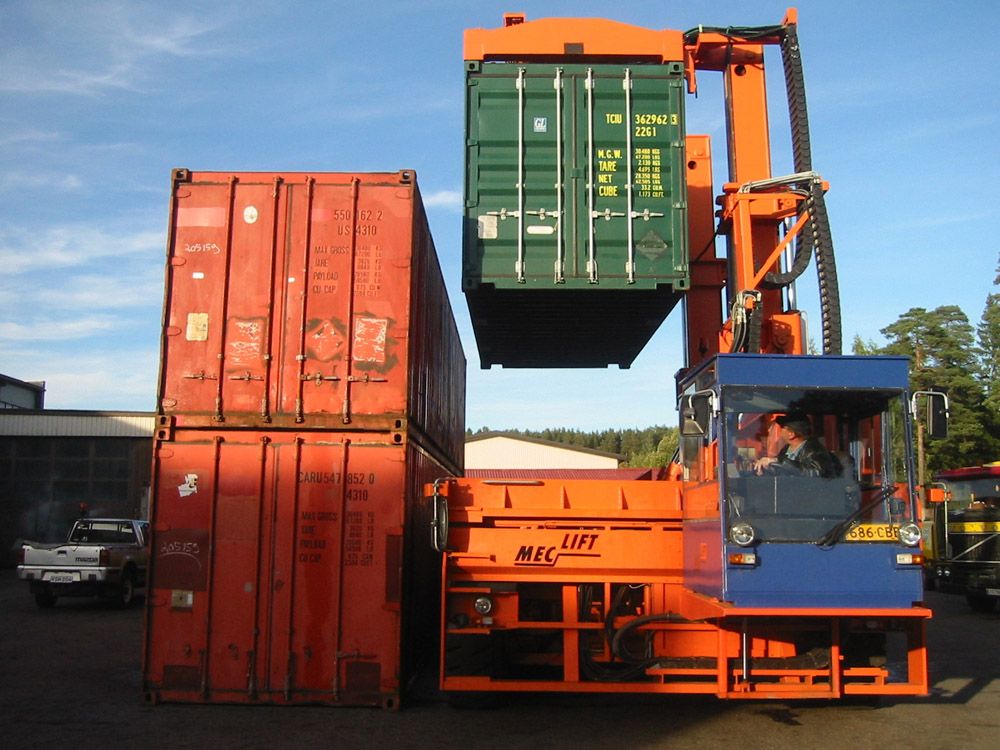

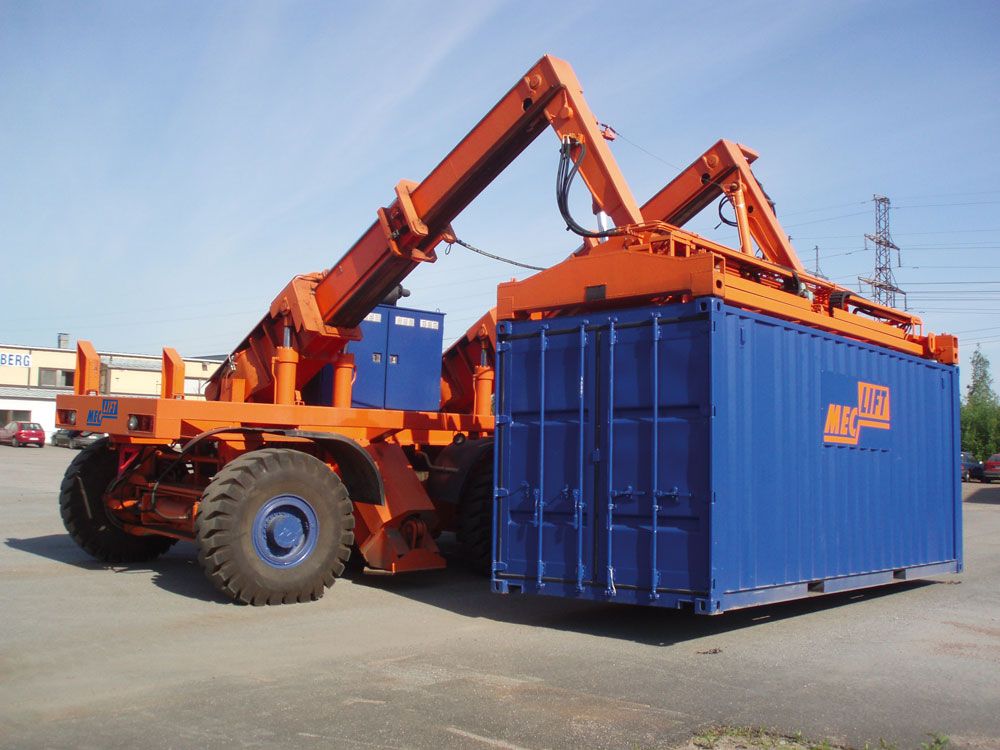

Meclift™ ML5016SR is an ideal solution when containers are handled in confined places. With a lifting capacity of 42.5 tons under the top lift spreader at a load center of 1.6 meters, it stacks containers up to three high with duplex booms and even four high with triplex booms. The lifting height is customizable according to the customers’ needs.

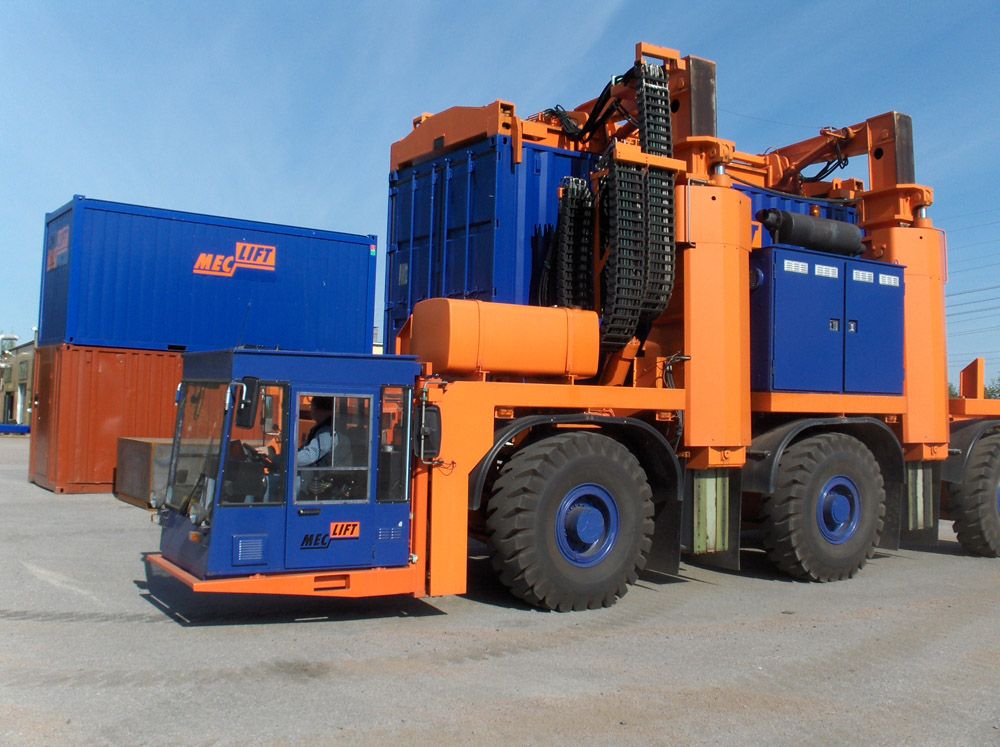

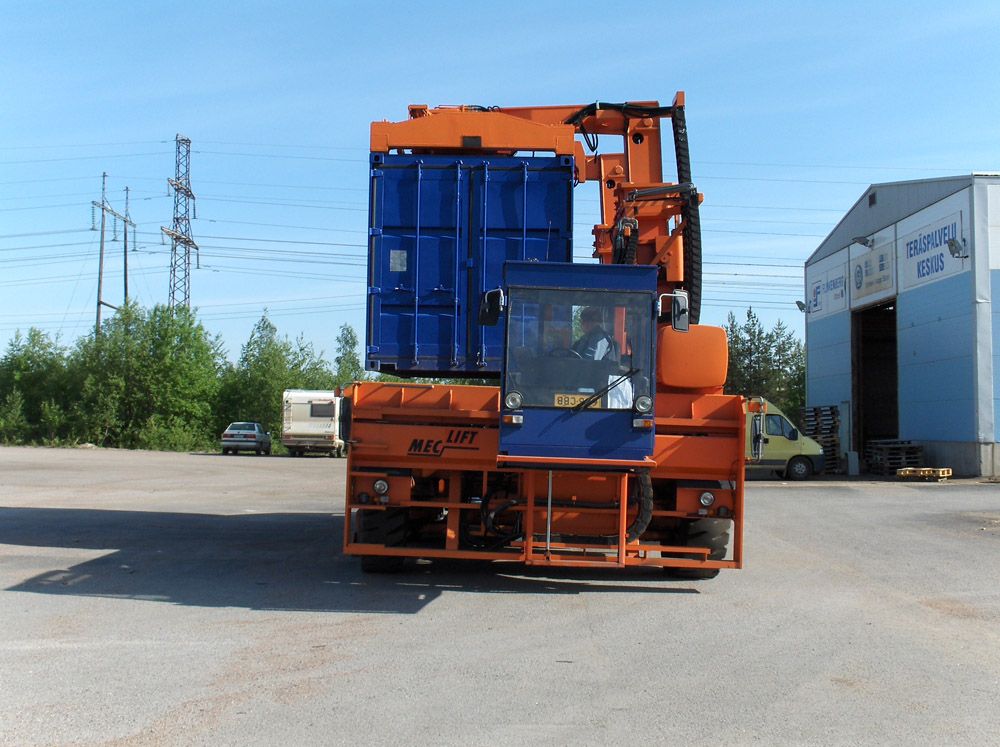

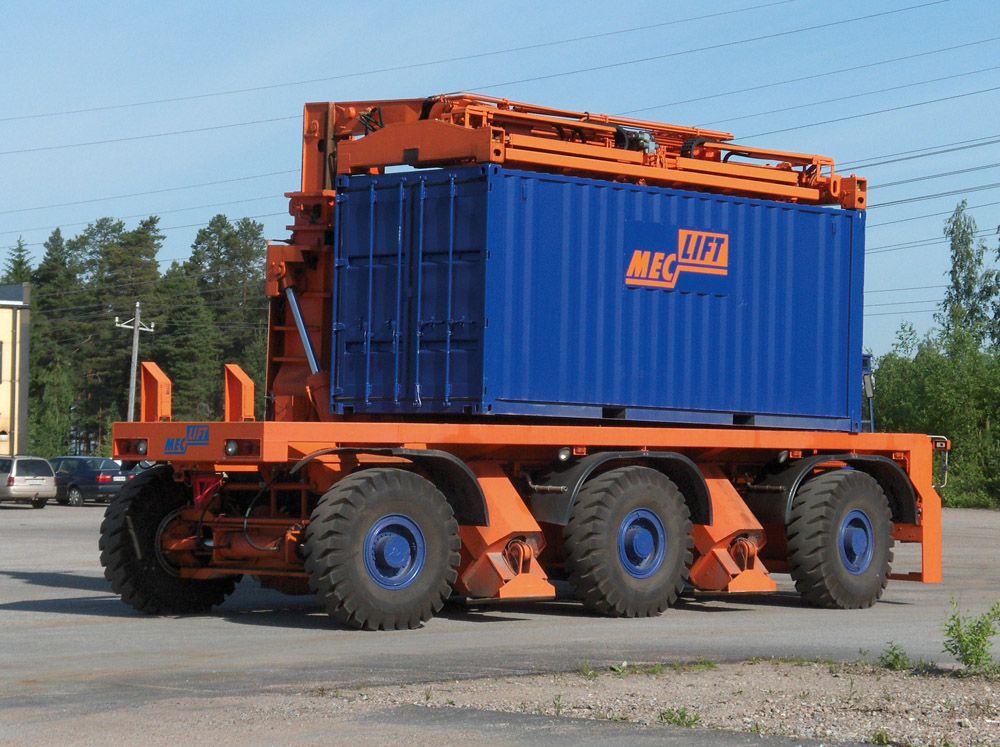

When it comes to agility, functionality, efficiency and safety, this side reach stacker is an ideal solution. With a container lifted to the top of its frame, it handles cargo in very tight places and moves at speeds up to 30 km/h.

Meclift™ ML5016SR can be driven through a standard 6 by 5-meter terminal door opening.

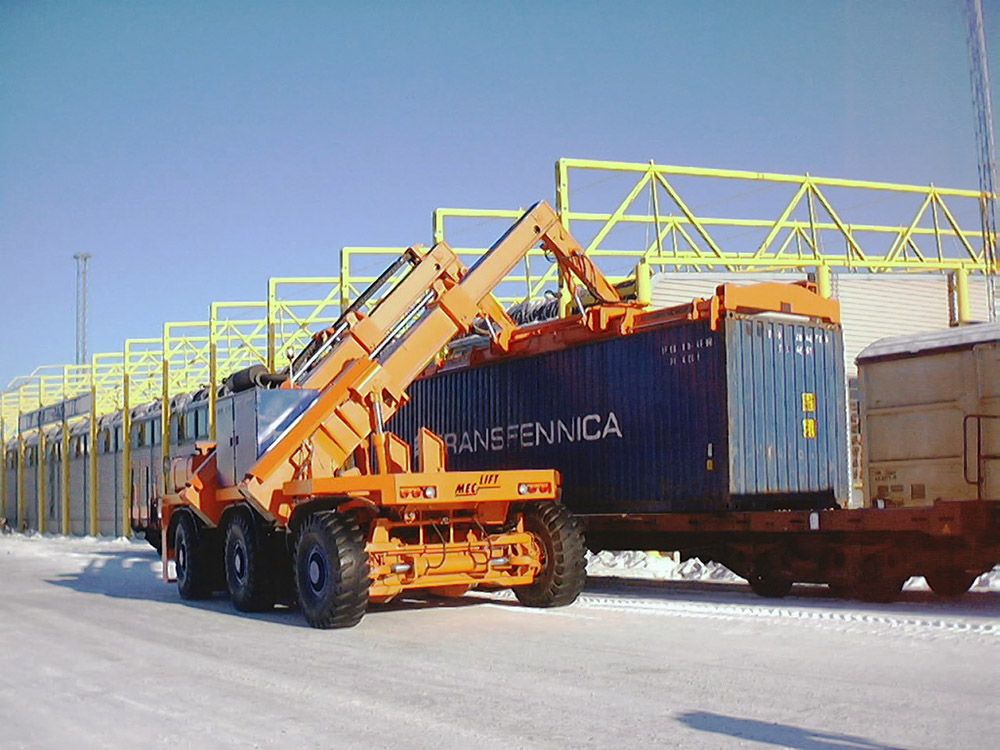

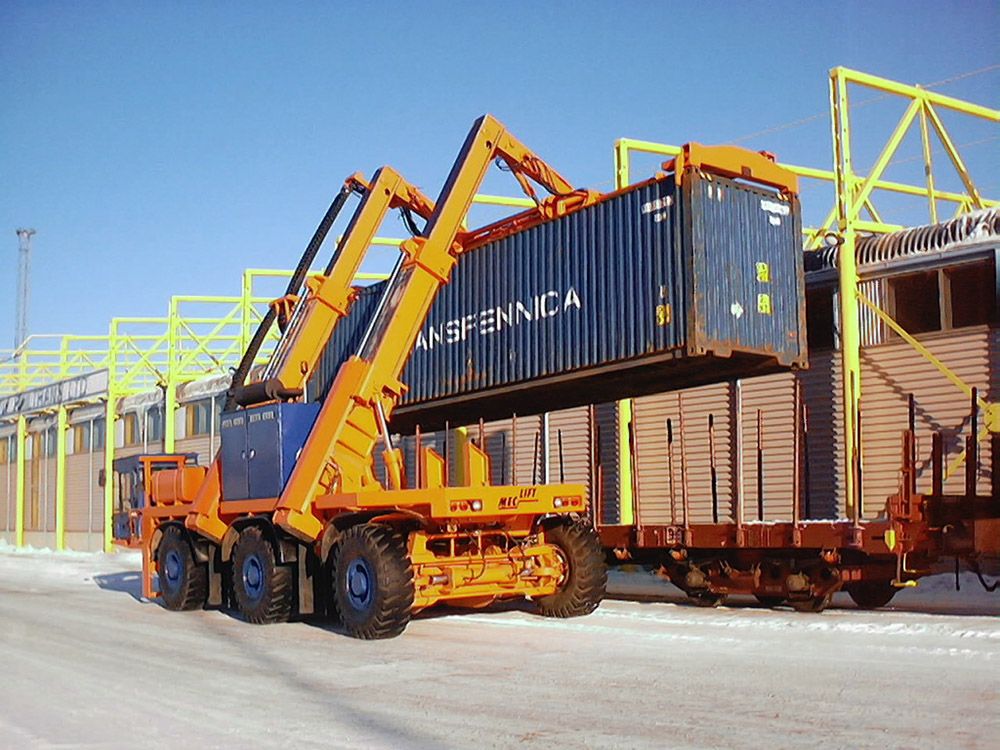

Meclift™ ML5016SR enhances logistics between railroads and highways even in areas without advanced infra-structure. All that is needed is a solid ground, on which to lay a foundation for a cargo handling station. This side reach stacker is manufactured by special order only.

“Meclift Side Reach Stacker is a shortcut between railroads and highways.”

Details

Manufacturer Oy Meclift Ltd, Finland
Type ML5016SR
Standard colors Orange (RAL2004) and Blue (RAL5002)
Lifting properties
Lifting capacity 42,500 kg
Load center 1,600 mm
Lifting height 7,690 mm
Reach Depending on boom structure
Dimensions
Length 11,700 mm
Width 4,000 mm
Height (min) 4,500 mm
Ground clearance 220 mm
Weight 64,000 kg
Turning radius 7,550 mm
Technical specifications
Power source Diesel engine
Manufacturer Volvo
Model TWD 1230 VE
Power rating ISO 2534 310@2100 kW@rpm
Peak torgue 1860@1300 Nm@rpm
Transmission Hydrostatic 4 wheel drive
Driving speed 30 km/h
Service brake Hydraulic motors and disc brake
Parking brake Disc brake
Tyres 6x18.00-25
Specialities

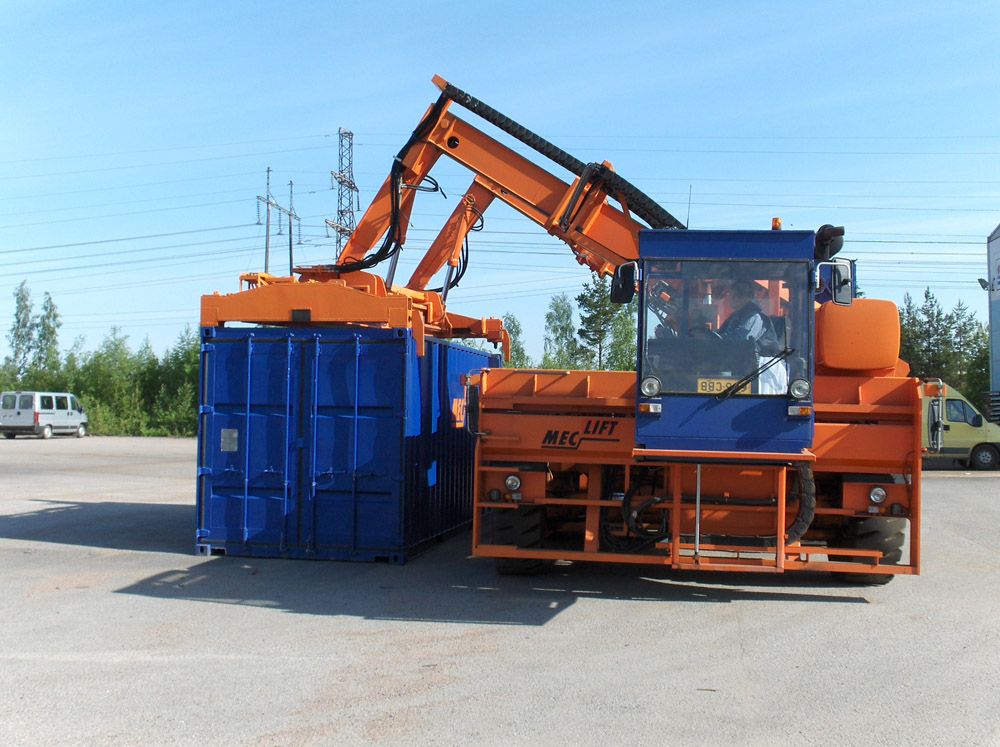

- Horizontally and vertically movable cabin
- Air conditioning and heating
- Different boom constructions and lifting attachments available
- Lifting height can be customized according to customer needs



Zubehör

  • elektrische Sitze
  • Klimanalage
Freitext
